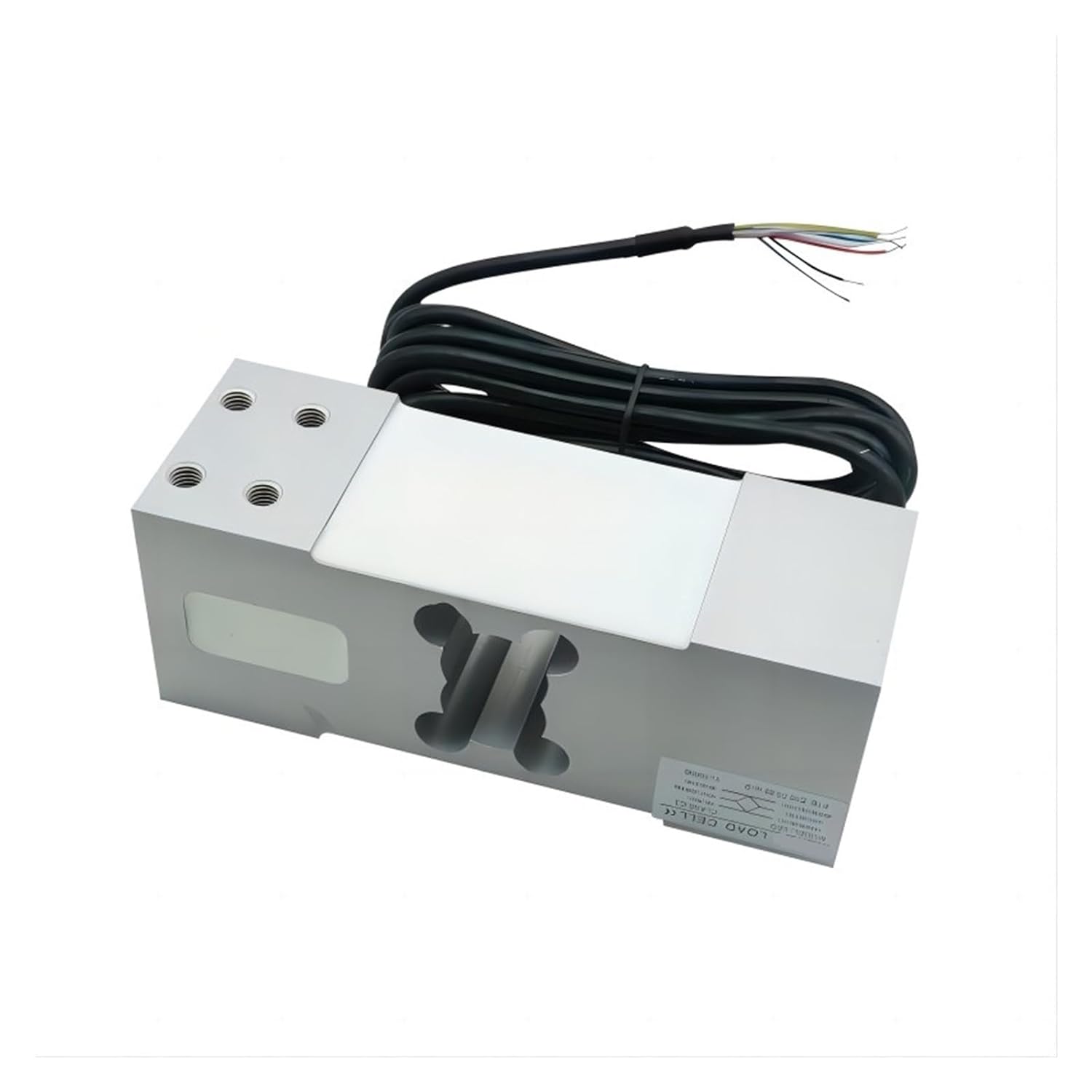

L6G-C3 Load Cell 50-600KG IP65 Portable Weighing Force Sensor for Platform Scale Electronic Scale Stable Signal Output(600KG)
Product details
| Management number | 220428012 | Release Date | 2026/05/03 | List Price | $34.93 | Model Number | 220428012 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product ParamentersRated load 50/100/150/200/250/300/500/600KGOutput Sensitivity 2.0±0.2mV/VComprehensive Error ±0.02%FSCreep ±0.0167%FS/30minEffect of temperature on output sensitivity ±0.0175%FS/10Effect of temperature on zero output ±0.02%FS/10Zero output ±2%FSTemperature Compensation range -10~40Allowable temperature range -35~65Input impedance 406±6Output impedance 350±3Insulation impedance 5000(50VDC)MRecommended excitation voltage 5~12(DC)VLimit excitation voltage 18(DC)VSafety overload range 120%FSLimit overload range 150%FSProtection level IP65Cable specification D5.9mmFour-angle error 0.02% loading value/100mmRecommended installation torque 20N.m
- 1. The L6G-C3 Load Cell is designed for weighing applications with a rated load of 50-600KG
- 2. With an output sensitivity of 2.0±0.2mV/V, the L6G-C3 Load Cell provides precise readings
- 3. This load cell features a temperature compensation range of -10 to 40℃
- 4. Rated at IP65 for protection, the L6G-C3 Load Cell is built to withstand harsh environments
- 5. The recommended installation torque of 20N.m and a comprehensive error rate of ±0.02%FS make the L6G-C3 Load Cell easy to maintain
| Color | Silver |
|---|---|
| Model | 588422017 |
| Brand Name | JCKJEDAT |
| Part Number | 588422017 |
| Manufacturer | JCKJEDAT |
| Weight Capacity Maximum | 1 Grams |
